Close-coupled pumps

Compact and economical – the alternative to standardized pumps

Close-coupled pumps

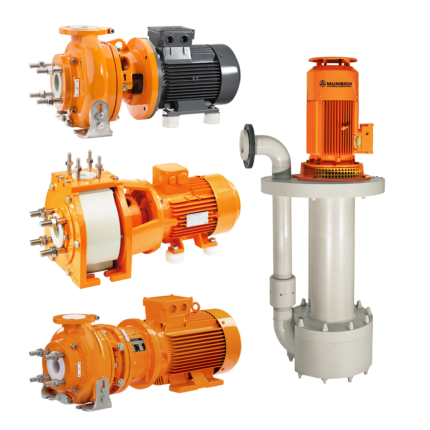

MUNSCH close-coupled pumps provide many users with a compact and cost-effective alternative to conventional standardized chemical pumps. Close-coupled pumps have a distinct advantage when it comes to footprint and weight. No need to say, the CS-B, NP-B, CM-B & TNP-series pumps as well meet the same high standards of operating reliability, robustness and quality as their frame-mounted counterparts and are available in numerous process configurations.

What is a close-coupled pump?

Close-coupled pumps are characterized by a common motor and pump shaft or by their motor shaft and pump shaft being rigidly connected in a pump casing. Rather than being supported by pump feet, the pump casing is directly bolted to the motor flange. This obviates the need for aligning the shafts with the pump casing, facilitating pump installation.

CS-B horizontal close-coupled pump

Casing and fitting dimensions to ISO2858/ISO5199

Produktbild Chemie Blockpumpe CS B

Performance data

CAPACITIES [Q] TO:90 m3/h
DIFFERENTIAL HEADS [H] TO:60 m
OPERATING TEMPERATURE:-20 to 180 °C
OPERATING PRESSURES [P] TO:16 bar
DISCHARGE NOZZLE FROM:DN 25 to DN 65
MOTOR RATINGS TO:18,5 kW

NP-B horizontal close-coupled pump

Casing and fitting dimensions to ISO2858/ISO5199

Produktbild Chemie Blockpumpe NP B

Performance data

CAPACITIES [Q] TO:200 m3/h
DIFFERENTIAL HEADS [H] TO:80 m
OPERATING TEMPERATURE:-20 to 110 °C
OPERATING PRESSURES [P] TO:10 bar
DISCHARGE NOZZLE FROM:DN 25 to DN 100
MOTOR RATINGS TO:11 kW

CM-B horizontal close-coupled pump

Casing and fitting dimensions to ISO2858/ISO5199

Produktbild Chemie Blockpumpe CM B

Performance data

CAPACITIES [Q] TO:90 m3/h
DIFFERENTIAL HEADS [H] TO:60 m
OPERATING TEMPERATURE:-20 to 150 °C
OPERATING PRESSURES [P] TO:16 bar
DISCHARGE NOZZLE FROM:DN 25 to DN 65
MOTOR RATINGS TO:18,5 kW

TNP vertical close-coupled pump

Produktbild Block Vertikalpumpe TNP

Performance data

CAPACITIES [Q] TO:110 m3/h
DIFFERENTIAL HEADS [H] TO:45 m
OPERATING TEMPERATURE:0 to 100 °C
OPERATING PRESSURES [P] TO:10 bar
DISCHARGE NOZZLE FROM:DN 25 to DN 80
MOTOR RATINGS TO:11 kW
